HDMI Extender Splitter 1×4, 1080P@60Hz, Extending 165ft (50m) Size Transmission Over CAT5e/CAT6/CAT7 Cable, 4 Channel Transmission Just one Energy Adapter
$175.99
Worth: $175.99
(as of Aug 09,2023 06:56:22 UTC – Particulars)
1.Introduction
The HDMI extender supplies extension of HDMI indicators lengthy distances over a single CAT6 cable, remodel one channel enter to 4 channel output, it helps excessive decision as much as 1080p . The extender can use for a variety of functions requiring lengthy distance transmission of excessive decision with top quality by its good stability and highly effective safety.
2.Options
(1) Transmits 1 HDMI video and audio indicators as much as 50M over a single CAT6 cable, (Cat5e—45m);
(2) Assist video decision as much as 1920*1080@60Hz, 3D sign;
(3) Rework one channel HDMI enter to 4 channel Cat6 sign output;
(4) Assist EDID copy perform, can match many sorts of show machine;
(5) Assist POC perform, just one energy adapter be used can help the entire package operation;
(6) Compliance with HDMI 1.3 normal;
(7) Constructed-in automated adjustment system, make the picture easy, clear and secure;
(8) Constructed-in ESD safety system;
(9) Easy to put in, plug and play;
3.Specs
(1) Most pixel clock: 165MHz.
(2) Most information price: 6.75Gbps.
(3) Interface: RJ45.
(4) Decision: Max 1920X1080@60Hz
(5) Connector: HDMI-A.
(6) Impedance: 100Ω.
(7) Transmission distance: CAT6—50M
4.Different
(1) Energy provide : DC 5V
(2) Energy dissipation: MAX 8W
(3) Temperature Working: -5℃ ~ +70℃
(4) Humidity Working: 5% ~ 90%
(5) Dimension TX:150*71*23mm/RX:81*45*23
(6) The guarantee: 1 12 months free guarantee
5.Packing Record

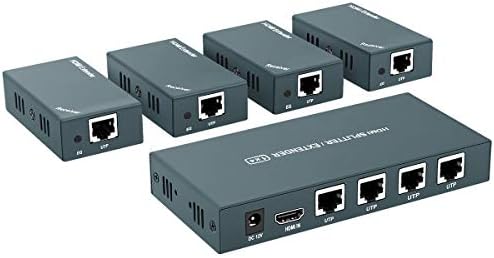

(1) 1x HDMI Transmitter
(2) 4x HDMI Receivers
(3) 1x Energy Provide
(4) 1x Person Guide
【HDMI Extender Over Ethernet, 1 Cut up 4】Contains 1 transmitter and 4 receivers. This package enable you to prolong and distribute 1 HD sign supply to 4 HD sign sources over CAT5e/CAT6/CAT7, max distance as much as 165ft (50m). Famous Please, not help IP transmit. To make sure the standard of transmission, we extremely suggest use top quality cables.
【POC Operate】Assist POC perform, means energy over cables, just one energy adapter be used can help the entire package operation, decreasing mass sophisticated operations, extra easy and handy.
【1080P Lossless transmisson 165feet】 Helps video decision as much as 1080P@60Hz and helps 3D visible enjoyment. Top quality audio and video synchronous transmission, secure, clear and easy. Give a feast to your eyes.
【EDID COPY FUNCTION】 This product has a really highly effective EDID copy perform, which makes it have the ability to determine the show machine parameters and match it, improve compatibility with the machine, and adapt to numerous complicated software environments.
【EASY INSTALLATION】Plug and play, no must drive, the metallic shell is sturdy, the fuselage is provided with warmth dissipation ports, which successfully reduces the harm attributable to warmth to the machine and prolongs the service life.
