SMTAV PTZ Digicam with 3G-SDI,HDMI and IP Streaming Outputs,20X Optical Zoom,Video Convention Reside Streaming Digicam for Broadcast,Convention,Occasions,Church and Faculty and so forth (20X, Digicam)

Worth: $799.00
(as of Aug 09,2023 08:12:21 UTC – Particulars)

Product Description

PTZ Digicam with 3G-SDI,HDMI and IP Streaming Outputs,20X Optical Zoom

SMTAV BA20S is a brand new design skilled Full HD Broadcast and Convention PTZ Digicam.It has 20X lossless optical zoom+16X Digital Zoom and 60.7 diploma FOV with Panasonic’s 1/2.7 inch top quality HD CMOS sensor and TAMRON 20x Lens.Helps 3G-SDI,HDMI and IP Streaming to output body charge as much as 60fps in 1080P.Excessive SNR of CMOS sensor mixed with 2D and 3D noise discount algorithm permits it to maintain the image clear and clear in an Low-light surroundings of 0.5 Lux.Assist TCP/IP,HTTP,RTSP,RTMP,Onvif,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols and so forth.Is a splendid use for Reside Streaming,Broadcast,Convention,Occasions,Church and Faculty and so forth.

Numerous interface varieties

With H.264/H.265,and so forth video compression expertise, RTSP/ RTMP/SRT/Onvif and different protocol assist.

Simply appropriate with OBS, vMix and different functions.

Multi-Operate Assist

3 Simultaneous HD Video Outputs

Concurrently output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG/H.264/H.265)

Reside Streaming Digicam

It helps H.264/H.265 video encoding and RTSP/RTMP protocols, can simply deal with varied stay steaming challenges

A number of Protocol Assist

Normal PoE/Onvif/VISCA/Pelco-D/Pelco-P/CGI/HTTP and and so forth protocols Assist.

Simply managed by IR controller, Community or serial port

VIDEO SPECIFICATIONS

Video Output Interface
3G-SDI, HDMI, CVBS, IP(RJ45)
Video Format
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 SD: 480i, 576i
Sensor
1/2.7”, CMOS, Efficient Pixel: 2.07M
Lens
20x, f4.42mm ~ 88.5mm, F1.8 ~ F2.8
Scanning Mode
Progressive
Focus Mode
Auto, Guide
Digital Shutter
1/30s ~ 1/10000s
Minimal Illumination
0.5 Lux at F1.8, AGC ON

White Steadiness
Auto, 3000K/Indoor, 4000K, 5000K/Outside, 6500K_1, 6500K_2, 6500K_3, One Push, Guide
Backlight Compensation
Assist
Digital Noise Discount
2D&3D Digital Noise Discount
SNR
≥55dB
Angle of View
Horizontal: 60.7° ~ 3.36°, Vertical: 34.1° ~ 1.89°
H & V Flip
Assist
Picture Freeze
Assist
Video Compression
H.265/H.264/MJEPG

PTZ SPECIFICATIONS

Rotation Vary
Horizontal: -170° ~ +170°, Vertical: -30° ~ +90°
Velocity Vary
Pan: 1.7° ~ 100°/s, Tilt: 1.7° ~ 69.9°/s
Preset operate
Assist
Variety of Presets
255

Preset Accuracy
0.1°
Assist Protocol Kind
VISCA over IP, VISCA, Pelco-D, Pelco-P, CGI, HTTP, Onvif
Management Sign Interface

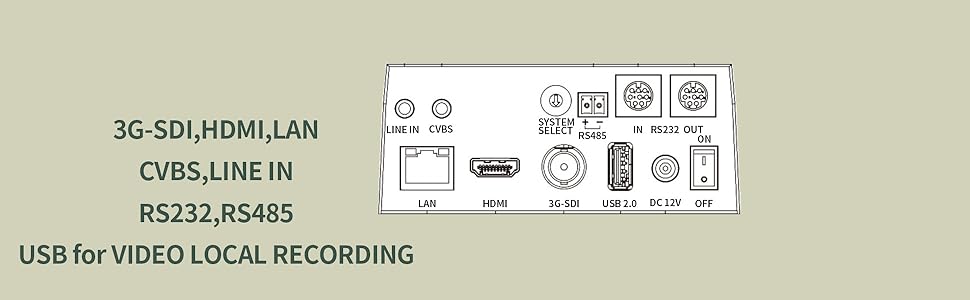

1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN), RJ45(IP Management)

OTHER SPECIFICATIONS

Energy Jack
JEITA sort (DC IN 12V)
Energy Consumption
12W (Max)
PoE
Assist(802.3af)
Working Temperature
-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature
-40°C ~ 60°C (-40°F ~ 140°F)

Native Storage
Assist(Flash disk through USB, FAT32 format)
Audio Interface
1×3.5mm Audio Interface,Line In
Audio Compression
AAC
MTBF
>30000h

Optical Zoom

10X
12X/20X/30X
3X

Digital Zoom

16X
16X/16X/8X

8X
Video Output Interface

USB2.0
3G-SDI,HDMI,IP
USB2.0

USB3.0
MAX Video Output

1080p@30
1080p@60
1080p@30

4K@30
Angle of View

60.7°
72.5°/60.7°
109°

120°
PTZ

Excessive Velocity PTZ
Excessive Velocity PTZ
Excessive Velocity PTZ

Digital PTZ
AI Monitoring

✓
Reverse Charging

✓

Voice Pickup Distance

5m
5m
Options
Excessive compatibility, Sturdy and Sturdiness
10x optical Zoom,Telephoto and huge aperture,H.264,UVC,VISCA
Good!
3x optical Zoom,Vast angle,UVC,VISCA
Sound by Harman,Bluetooth 5,USB C,Reverse Charging
EPTZ 4k Webcam,Digital Zoom,120° FOV,AI Monitoring,Inbuilt Twin-mic,H.264

Apply Panasonic’s 1/2.7 inch top quality HD CMOS sensor and TAMRON Lens affords a large 60.7 diploma FOV and assist 20x lossless optical zoom and 16X Digital Zoom.The Excessive SNR of CMOS sensor and 2D&3D Digital noise discount helps working in 0.5 Lux Low Mild properly.
As a PTZ digicam,helps horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has a number of methods of management, such because the included IR distant controller,CGI/HTTP/Visca/Pelco-D/Pelco-P/Onvif management through RS485 or RS232 or IP.Appropriate with Ptzoptics App.
Is a Full HD skilled stay streaming digicam and video convention digicam,it may possibly concurrently output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Assist PoE(802.3af) and RTSP, RTMP, SRT and different applied sciences,capacity to assist superior options for stay streaming.
It has quite a lot of set up modes, which can be utilized with tripod brackets, wall brackets, and ceiling brackets.For simplicity,we additionally supply free app that will help you setting the digicam.★ When you want wall or ceiling mount bracket pls serach B08SC4N9J2.★
What are you able to get.20X Full HD PTZ Digicam,Energy adapter,IR distant management,person handbook,Serial management cable.Any query, please be at liberty to contact us, Our assist crew will reply you inside 24 hours.
